TAOC

  • For more than half a century, we have been making cast iron parts for automobiles that run in cities around the world.

    Also we have been making TAOC insulator with cast iron in the same way.Each product delivers much satisfaction , confidence.

    The most compact products that expresses Aisin Takaoka Technology, which has produced automobile parts is TAOC insulator.

    Since 1988, TAOC cast iron insulators have featured proper control of vibration and various cast iron materials to create ideal sound with adjusting reverberation.
    Gradation cast iron , High-carbon cast iron and Advanced High-carbon cast iron are adopted in our insulators.
    Contribution to improving the sound quality of vibration damping properties of cast iron has been recognized in various scenes over the years.
    It is installed as the legs of high-end audio equipment from audio manufacturers.
    More feature of cast iron is durability, adaptation to even heavy equipment.

  • Vibration damping performance
    is required for Brake disc rotor.
    Representative model of early TAOC insulator
    TITE-27R
  • Vibration damping mechanism

    Carbon contained in cast iron is very important for vibration damping characteristics.
    We choose the most suitable cast iron among them for required sound.

    • 金属組織(普通鋳鉄)

    • 鋳鉄中の黒鉛構造

      Advanced high-carbon cast ironThis is a cast iron material (patented) that has had its uniformity and hardness enhanced by heat-treating high-carbon cast iron.

      High-carbon cast ironThe graphite pieces in this cast iron are larger than in regular cast iron.

      Gradation cast ironIn this cast iron material, the graphite pieces closer to the perimeter are smaller and those near the center are larger.

Super insulatorseries

The ultimate line, all made of cast iron , two types of effects with two types of cast iron. Big Impression is also here.

Super insulator series is the flagship line for TAOC. It takes the knowledge and research we cultiveted for our insulators to the next level.
Blend of vibration insulation with spike and friction damping by vibration absorption of cast iron to the finest quality.

  • TITE-35S4/3

    TITE-35S , the top of TAOC insulatoirs.

    Both advanced high carbon cast iron plates and high carbon cast iron spikes can be placed on top.
    Setting spike on the top , you obtain clam and deep tone on your set.
    In opposite side with Advanced high carbon provides very clear, balanced harmonic overtones.
    The diameter of 50mm wide size makes any heavy Speakers, amplifiers and players applicable.
    Including Insulator grip sheets, which features incredible grip , enhance stability while setting.

TITE-35S

  • ● Spike pointing doun

    Delivers natural dynamics and a calm audio image.

  • ● Spike pointing up

    Delivers audio images that are both glamorous and subtle.

  • TITE-35S3 ( for a set of three pairs )
    ● H29 mm×50mm diameter
    ● Weight : 355 g per pair
    ● Spike: High-carbon cast-iron
    ● Spike plate: Advanced High-carbon cast-iron
    ● Finish : Urban gray

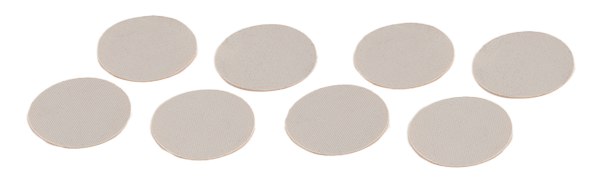

    Insulator grip sheet included

    45mm diameter for a set of six
    Material: Urethane resin
    • This grip sheet delivers excellent gripping and helps to achieve stability and positioning.

  • TITE-35S4 (for a set of four pairs)

  • TITE-33S4/3

    Another flag ship line for world’s great conpact speakers.

    Both advanced high carbon cast iron plates and high carbon cast iron spikes can be placed on top.
    Setting spike on the top , you obtain clam and deep tone on your set.
    In opposite side with Advanced high carbon provides very clear, balanced harmonic overtones.
    TITE-33S is available compact speakers as well as any equipments with supreme effects.
    Including Insulator grip sheets, which features incredible grip , enhance stability while setting.

TITE-33S Using different spike orientations

  • ● Spike pointing doun

    The sound will be more glamorous and subtle, and brightness increases.

  • ● Spike pointing up

    The sound will be more calm, with a greater low-end feel and stability.

Line up

  • TITE-33S4 ( for a set of three pairs )
    ● Weight : 170 g per pair
    ● Spike: H16 mm×35mm diameter
     High-carbon cast-iron
    ● Spike plate: H10 mm×45mm diameter
     Advanced High-carbon cast-iron
    ● Spike & Spike plate: H 21 mm
    ● Finish : Urban gray

    nsulator grip sheet included

    30mm diameter for a set of four 40mm diameter for a set of four Material: Urethane resin
    • This grip sheet delivers excellent gripping and helps to achieve stability and positioning.

  • TITE-35S4 (for a set of four pairs)

Pin plate insulatorsseries

Inherit tradition,with the times, with accumulated confidence.

Pin plate insulator series is the traditional line, which is produced over a quarter of a century.

  • TITE-46GP

    Large model of the "Pin Plate Insulator", Hybrid characteristics of exceptional durability ,vibration insulation

    From fist GP model T46 PIN is produced in 1990, not any major changes, long-standing as TAOC traditional insulator line in the present.
    Combination gradation cast iron spikes and stainless plates allows very clear, open tone under a speakers, amplifiers, any players.

  • TITE-25GP

    Standard model of the "Pin Plate Insulator", Hybrid characteristics of remarkable durability , vibration insulation

    A origin of Super insulators series , spike of CSR rack, TITE-25GP features.
    Combination gradation cast iron spikes and stainless plates allows very clear, open tone under a speakers, amplifiers, any players.

Pin plate insulators

● Please use these with plates on the bottom.

Feet for your amplier or player

Speaker base

Line up

  • TITE-46GP (set of three)

    TITE-46GP
    ● H45mm×60mm diameter
    ● Plate : H5mm×35mm diameter
    ● Weight : 800g per insulator
    ● Gradation cast iron/Pin plate:Stainless steel
    ● Finish : Urban gray

  • TITE-25GP (set of three)

    TITE-25GP
    ● H25mm×50mm diameter
    ● Plate : H5mm×35mm diameter
    ● Weight : 250g per insulator
    ● Gradation cast iron/Pin plate:Stainless steel
    ● Finish : Urban gray

Advanced high carbon cast iron insulatorseries

Advanced high carbon cast iron makes big difference with deep , clear tone.
TAOC's new material insulator that achieves both excellent damping and moderate hardness made by TAOC's original construction method (patented).

  • TITE-25AD

    Patented Cast iron worth installing , discovery of distinct , sound improving.

    Designing TITE-25 AD simply , we provide Hi-End audio system with remarkable performance of the material directly.
    Advanced high carbon redefines TAOC’s signature total sound quality, which bring new value to the current High-end audio system with essence of music: the dynamics of livery music to the breathtaking silence.

Line up

  • TITE-25AD
    ● H20 mm×50mm diameter
    ● Weight : 250 g per insulator
    ● Advanced High-carbon cast-iron
    ● Finish : Urban gray

  • TITE-25AD (set of four)

Gradation cast ironseries

Set of 8 for quick experience at your sound system

Our basic cast iron line. Installing under the speakers is recommend.

  • TITE-25GS

    The standard TAOC insulators , which features enough damping, for any equipments.

    TITE-25GS features set of 8 insulators for installing quickly at your sound system. Gradation cast iron is basic but performance is enough to improve whole sound more with vibration damping.
    Also, Adapting as foots of audio equipments is available as well as Luxury equipments in the world.

  • TITE-13GS

    The baby insulators in TAOC , which features damping, dubability, for all compact speakers.

    TITE-13GS features set of 8 insulators for installing quickly at your sound system. Gradation cast iron is basic but the performance is enough to improve whole sound more clearly with vibration damping.
    Including felt sheets to attach on the bottom.
    Small but trustful performance for any compact speakers.

Line up

  • TITE-25GS (set of eight)

    TITE-25GS
    ● H20 mm×50mm diameter
    ● Mounting hole 5mm diameter
    ● Weight : 250 g per insulator
    ● Gradation cast iron insulators
    ● Finish : Matte black

  • TITE-13GS (set of eight)

    TITE-13GS
    ● H10 mm×25mm diameter
    ● Mounting hole 5mm diameter
    ● Weight : 30 g per insulator
    ● Gradation cast iron insulators
    ● Finish : Matte black
    ● Felt sheet

Cast iron spike insulators & plates

Setting under the spike, it offers whole sound improving.

Place it under the spike-shaped legs to prevent scratches on your floor.
PTS-A and G deliver effects that is worthy of special mention for sound advancement.
Spike plate line is a vital yet often overlooked piece of sound system.

  • PTS-A

    PTS-A is the flag ship of TAOC spike insulaotors.
    Designed with golden ratio, Advanced high carbon cast iron plates enable to deliver stability as well as absolute sound quality improvment.
    From amplifier or player in your rack to huge speaker that features powerful loud bass , all the equipment is available. Once you set it , the tone of your sysetem add deep , clerar ever.

  • PTS-G

    PTS-G is the basic model of TAOC spike insulators.
    Simply designed 40mm diameter plates are made of gradation cast iron. Attached felt sheet on the bottom prevents scratch on the floor.
    Once you set it, the system obtains totally clear projection and resonance.

  • PTS-N

    PTS-N is one od our long-seller plates, made of stainless materilal.
    Easy to install, prevent spike scratch on the floor.

Line up

  • PTS-A (set of four)

    TITE-46GP
    ● H12 mm×50mm diameter
    ● Weight : 155 g per insulator
    ● Advanced High-carbon cast-iron
    ● Finish : Urban gray

  • PTS-G (set of four)

    TITE-25GP
    ● H16 mm×40mm diameter
    ● Weight : 130 g per insulator
    ● Gradation cast iron insulators
    ● Finish : Matte black
    ● Felt sheet

  • PTS-N (set of four)

    TITE-46GP
    ● H5mm×35mm diameter
    ● Weight: 35g per insulator
    ● Stainless steel
