TAOC

  • The most amazing Audio boards with Honeycomb core.

    Since starting sales of initial SCB series made of all cast iron, we have been pursuing our ideal sound and even better feature.
    Current products are absolutely finest since honey comb core installed.
    Moreover, only using wood and coating material that are well selected provides rich resonance and express every nuance.
    TAOC audio boards are effective at every point in the acoustic system, even on the floor and between rack shelves, to take the entire space to even higher levels.

Honey comb core

  • Our unique vibration dumping construction enable to balance high rigidity with outstanding effective dumping property.
    In hexagonal cellule-like structures, they are filled with cast iron powder that have passed the prescribed standards collected at our own factory in Aisin Takaoka, and molded high-pressure with a hard board. When vibration is received, cast iron powder rubs against each other and is consumed as thermal energy, and it serves to prevent unnecessary vibrations from being transmitted to the audio equipment.
    As one of TAOC's core technologies, in addition to the current audio board, honeycomb cores are also adapted shelves inside of higher-end audio racks such as CSR and ASRIIII.

SUB-HC Series

  • Everything you need for the audio board setting between rack shelves is here.

    SUB-HC50C is designed to provide additional sound quality improvement by high-damping under equipment on the shelf of the audio rack.
    The wood material reviewed for SUB and designed to be thinner than usual helps easy to set between shelves. Melamine top plate offers crisp and articulate sound.

Line up

  • SUB-HC50C
    ● Outer dimensions: W495 x D445 x H22mm.
    ● Space for equipment: W477 x D427mm
    ● Weight: 5kg
    ● Color: Clear Black

  • SUB-HC50C

SCB-RS-HC Series

  • The most reliable, heaviest TAOC audio board in our history.

    The SCB-RS-HC series is the flag ship model of the TAOC audio board. In recent years, due to the evolution of technology, the scale of the equipment and the performance have been very diverse. We have developed an audio board that can be called a master model beyond the conventional SCB with seven-layer structure, the largest in the our history.
    The SCB-RS-HC series, which is heavy and robust ever, can literally provides a master class damping effect for any sound system including heavy-large equipment.

Line up

  • ● Color: Dark Gray Metallic

    SCB-RS-HC G

    SCB-RS-HC45G(Pair set)
    ● Dimensions: W450 x D350 x H52mm.
    ● Weight: 7kg per board

    SCB-RS-HC50G
    ● Dimensions: W500 x D450 x H52mm.
    ● Weight: 10kg per board

    SCB-RS-HC65G
    ● Dimensions: W650 x D600 x H52mm.
    ● Weight: 17kg per board

  • ● Color: Dark Blue Metallic

    SCB-RS-HC B

    SCB-RS-HC45B(Pair set)
    ● Dimensions: W450 x D350 x H52mm.
    ● Weight: 7kg per board

    SCB-RS-HC50B
    ● Dimensions: W500 x D450 x H52mm.
    ● Weight: 10kg per board

    SCB-RS-HC65B
    ● Dimensions: W650 x D600 x H52mm.
    ● Weight: 17kg per board

Option

  • SP-100 (Four per set)
    Spikes and plates

    SP-100 (Four per set)
    ● φ8×H・25~30mm

  • SP-500 (Four per set)
    Spikes and plates

    SP-500 (Four per set)
    ● φ32×H・20~25mm
    ●Weight: 500kg/1

  • RS-500 (Four per set)
    Spikes

    RS-500 (Four per set)
    ● φ30×H・45~50mm

SCB-CS-HC Series

  • Cool and Warm , there are each real effect and personality.

    SCB-CS-HC series is authentic standard audio board.

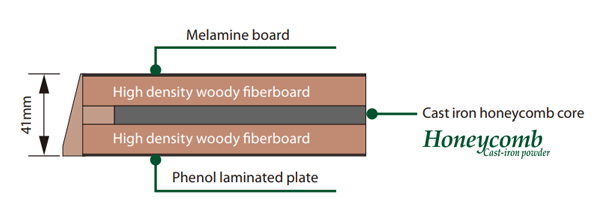

    You can choose from two types of top specifications: melamine (C type) and oak (W type).

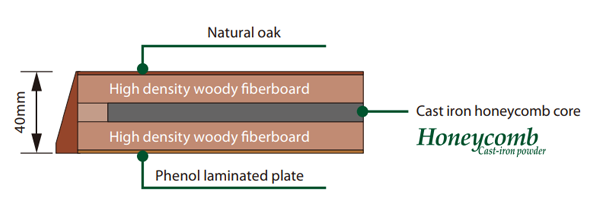

    C type features cool and clear. Natural oak finished W type features warm and acoustic tone.
    Use these underlays for your speaker stands, any players and amplifiers.
    Then choose the right product for the appearance of set up or the sound you seek.

Line up

  • ● Color: Clear Black

    【C Type】SCB-CS-HC C

    SCB-CS-HC45C(Pair set)
    ● Outer dimensions: W470 x D400 x H41mm.
    ● Space for equipment: W450 x D350mm
    ● Weight: 6kg per board

    SCB-CS-HC50C
    ● Outer dimensions: W520 x D490 x H41mm.
    ● Space for equipment: W500 x D440mm
    ● Weight: 9kg per board

    SCB-CS-HC65C
    ● Outer dimensions: W670 x D640 x H41mm.
    ● Space for equipment: W650 x D590mm
    ● Weight: 16kg per board

  • ● Color: Wood

    【W Type】SCB-CS-HC W

    SCB-CS-HC45W(Pair set)
    ● Outer dimensions: W470 x D400 x H40mm.
    ● Space for equipment: W450 x D350mm
    ● Weight: 6kg per board

    SCB-CS-HC50W
    ● Outer dimensions: W520 x D490 x H40mm.
    ● Space for equipment: W500 x D440mm
    ● Weight: 9kg per board

    SCB-CS-HC65C
    SCB-CS-HC65W
    ● Outer dimensions: W670 x D640 x H40mm.
    ● Space for equipment: W650 x D590mm
    ● Weight: 16kg per board
